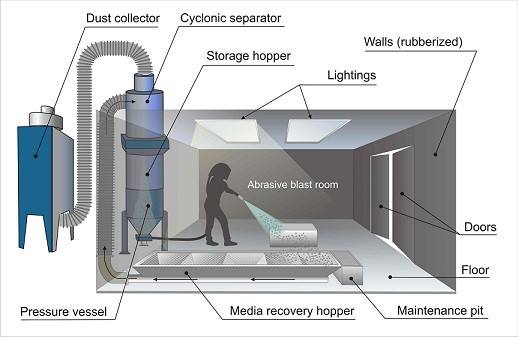

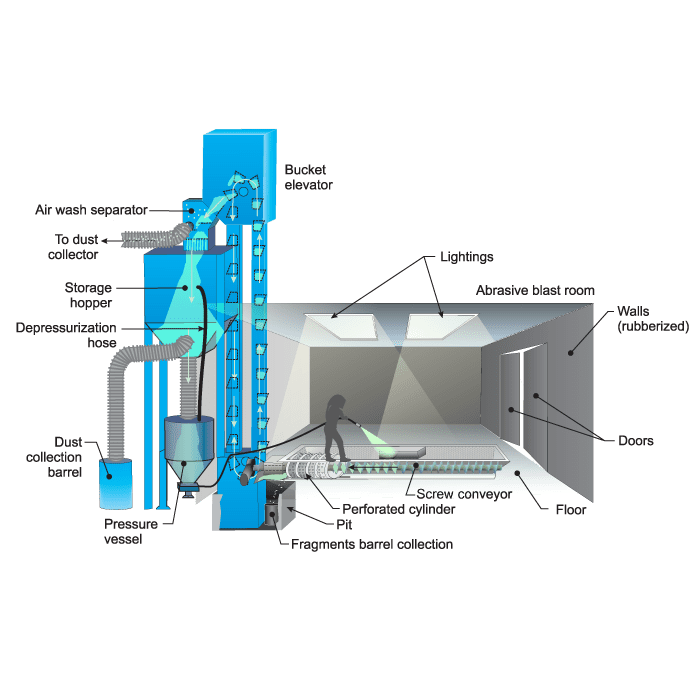

Automatic Recovery System Electric Customized Sandblasting Room Booth

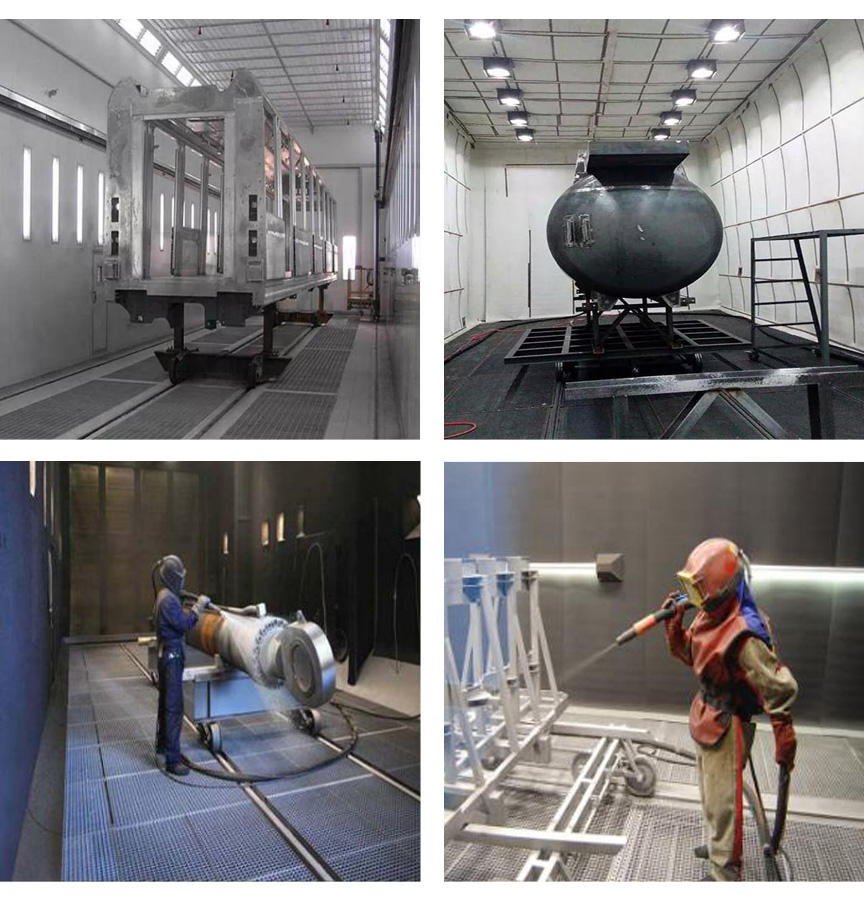

A blast room provides a controlled blasting environment for efficient cleaning, superior surface quality, and ensured safety and environmental compliance.
Meeting the requirements of blast cleaning surface of welded structure, piping, plates and other types of workpieces. Our blasting machines or rooms are environment-friendly, high performance,
stable working, reliable and convenient operation process, capable for long term high load production.
Media used: glass bead, steel shot, garnet...
Polishing, cleaning, hammering by projection of media mainly intended for the treatment of specific equipment made of stainless steel, wood, plastic.

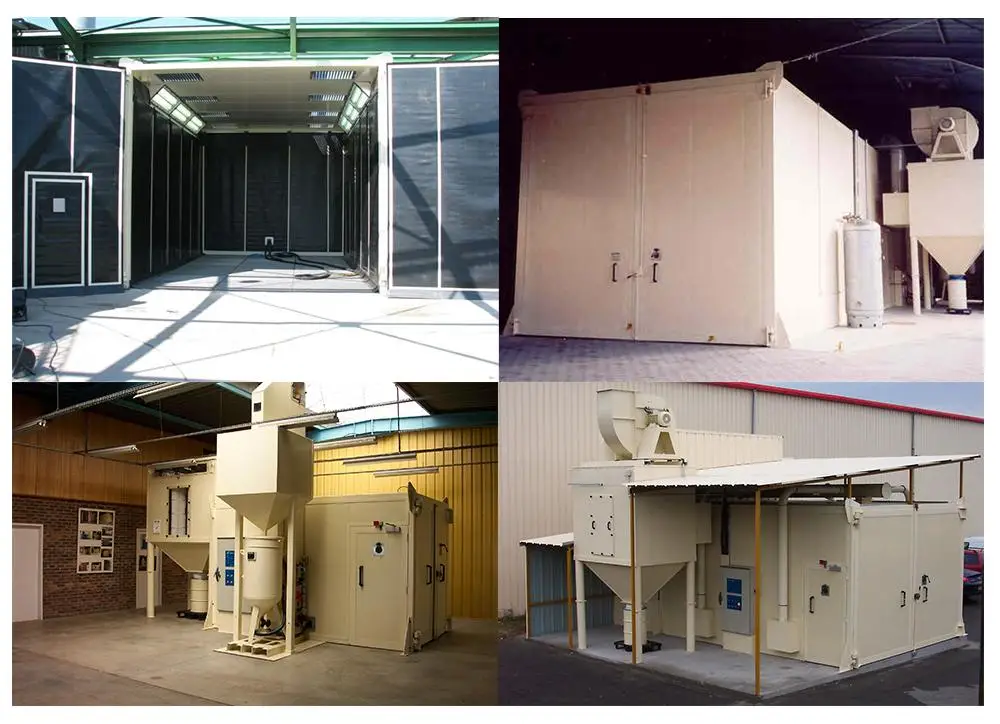

We produce cabins of all sizes.
These booths are standardized, pre-assembled and factory tested.

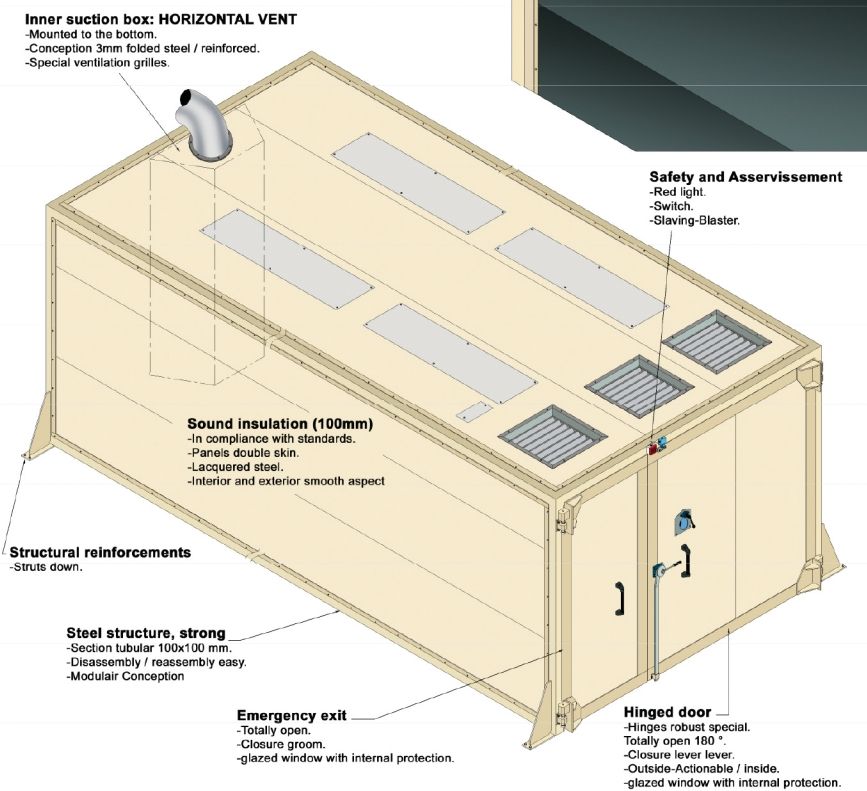

Sandblasting chamber
The blast enclosure is an essential part of the booth. It ensures the robustness of the installation and its sound insulation.
The main door has an external closing system and the emergency door (several according to the regulations) is equipped with a closing bell. Each main or emergency door has: - a closing sensor - a red light - an armored viewing window with internal protection - a double handle
Inside of Sandblasting room
The cabin interior must be particularly robust because it is subjected to extreme stresses mainly in small cabins and for shot blasting.
All our walls, doors and internal ventilation boxes are protected by special 3mm canvas rubber. The rubber strips are mounted on specific steel lines, the strips have a 50 to 100 mm overlap blocked by a 50 mm flat iron.

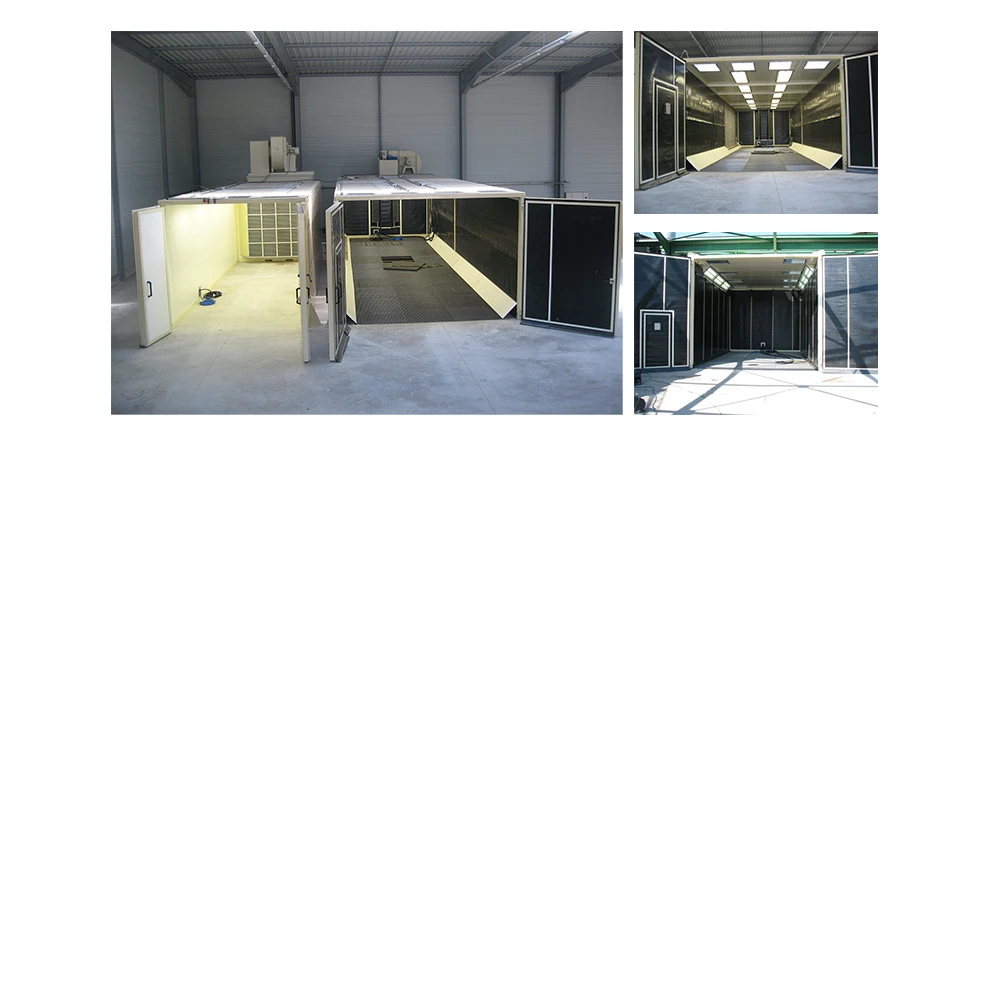

Special sandblasting room
Our design office studies all the projects of our customers and our manufacturing unit is sized to carry out any adaptation or modification of our cabins.

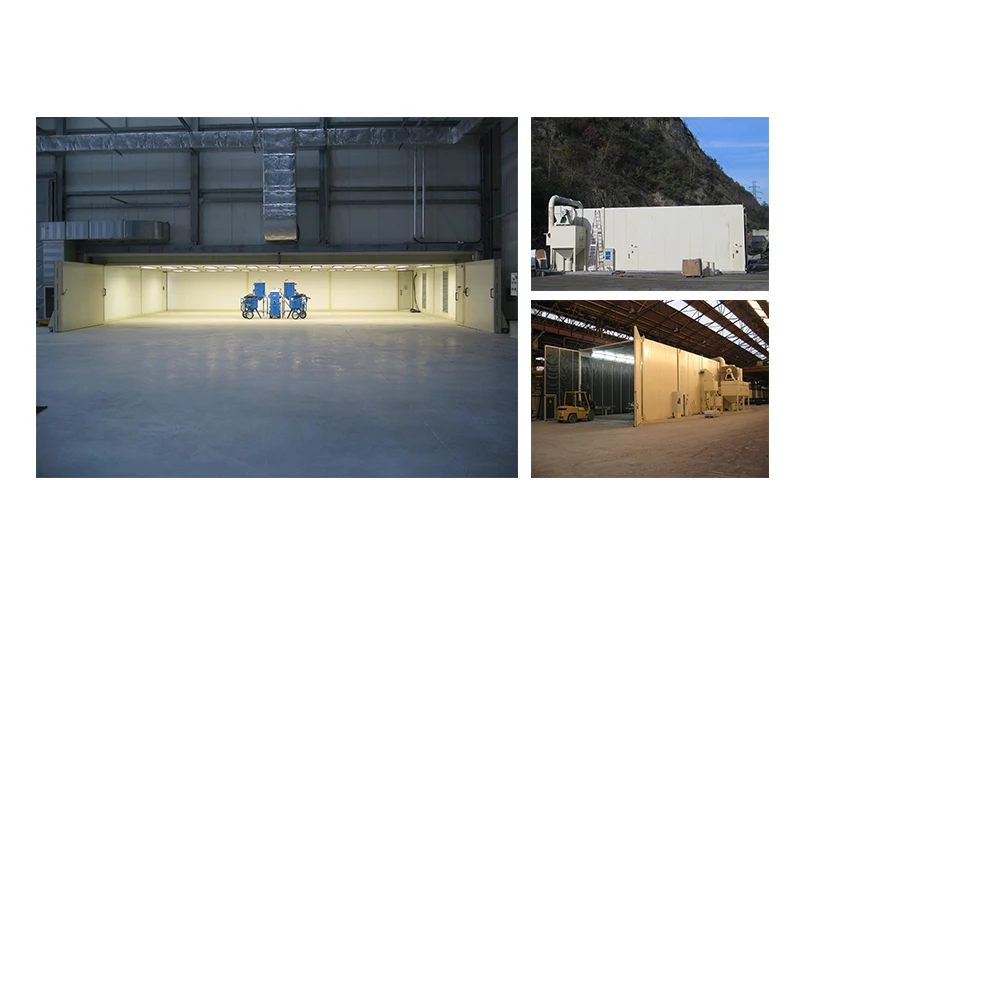

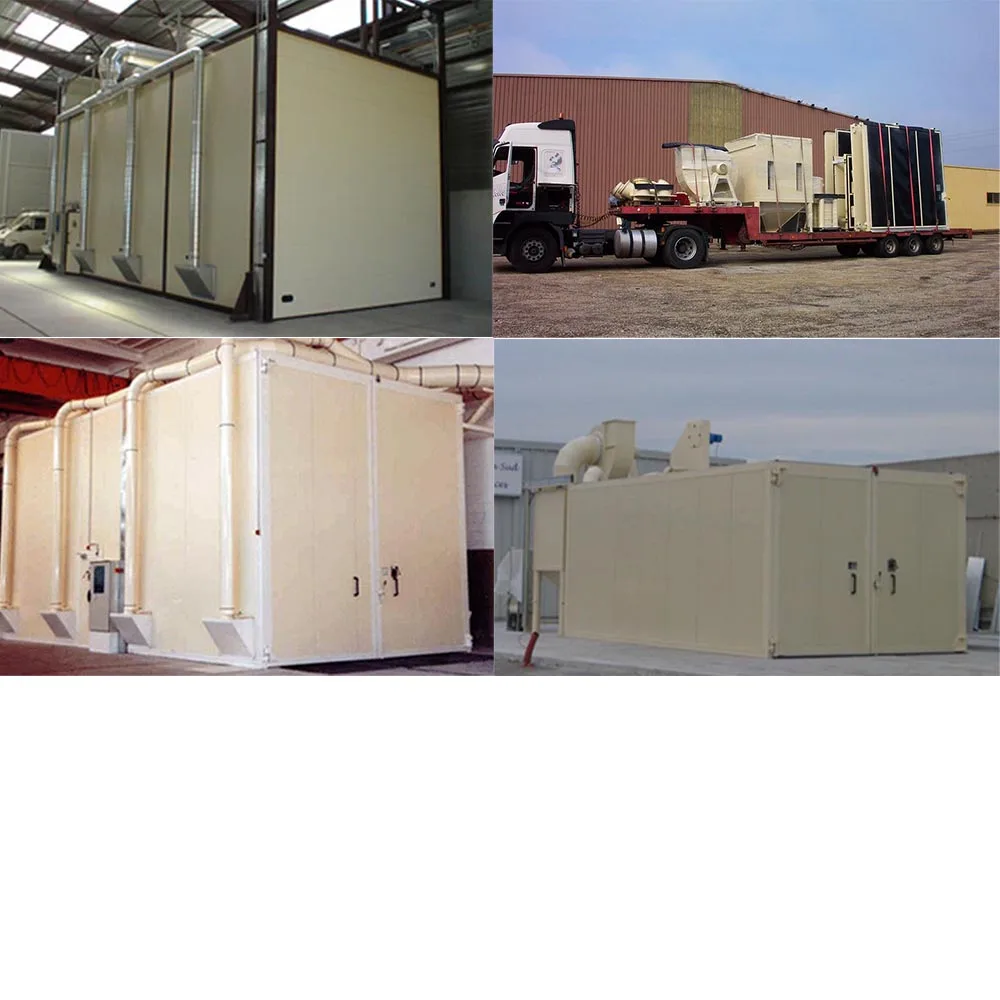

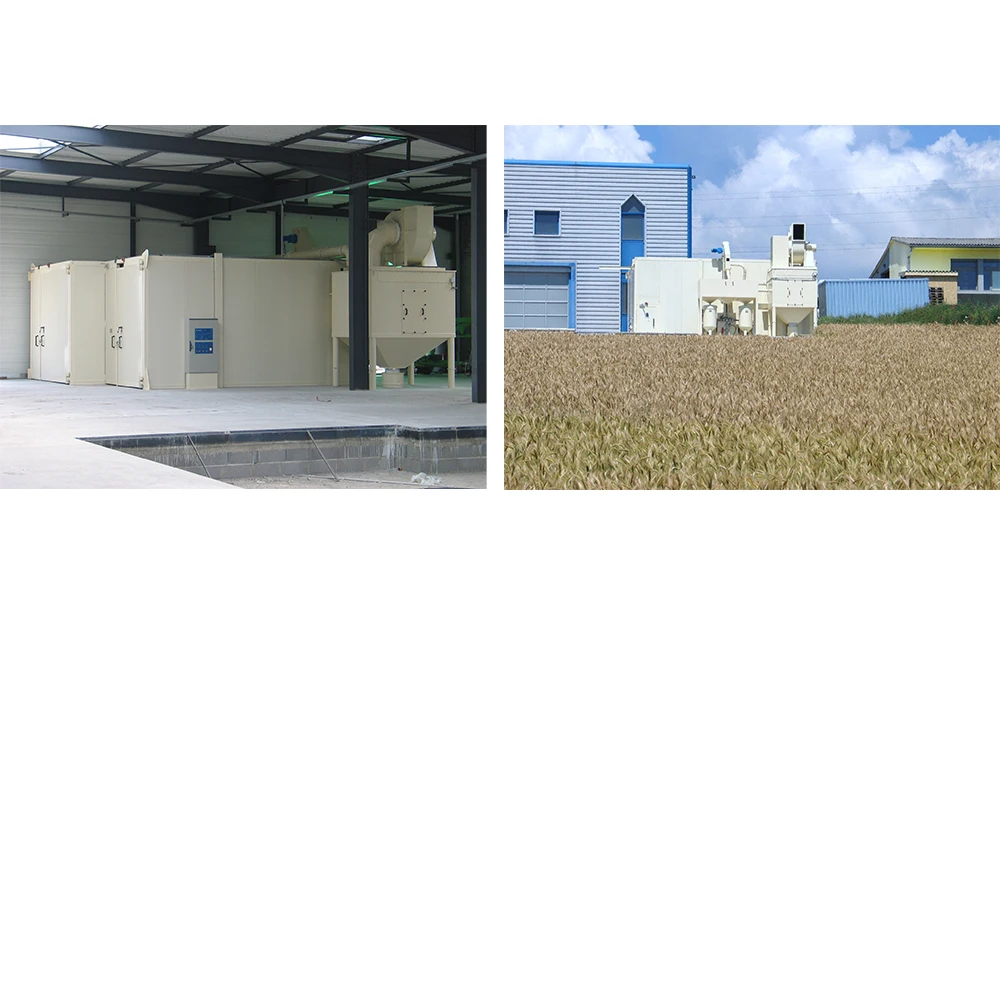

Large Sandblasting room
We produce cabins with large dimensions:
Our design office and our manufacturing unit adapt and modify our standard manufacturing for large units according to the requests of our customers.

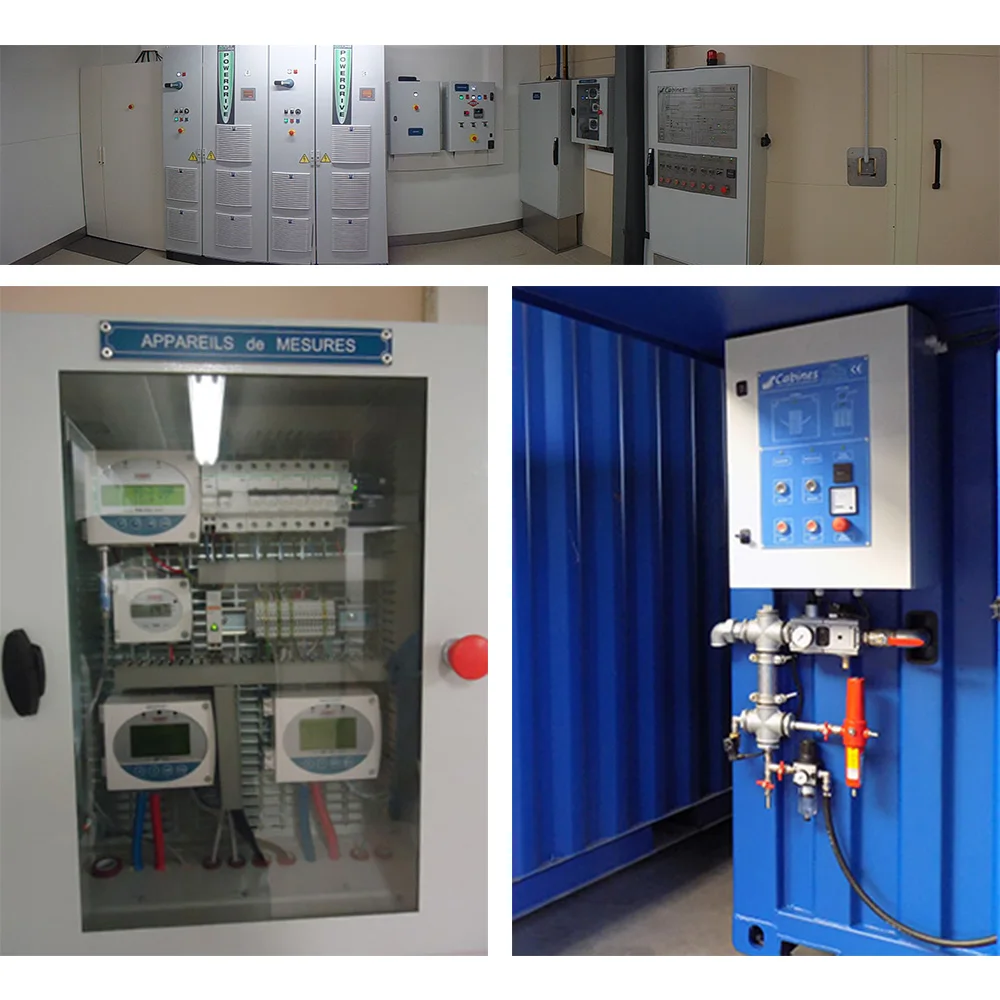

Electrical box and safeties
An electrical box meets standards in each cabin.
Our company has a room dedicated to the manufacture of electrical boxes for our production.
We make boxes for our standardized equipment.
For sandblasting cabinets, according to the standards in force, the operation is slaved to the closed doors, lighting and ventilation in service.
For specific orders or special cabins, we can make any type of electrical box including customer requests.
PRODUCT PARAMETER
DX Blast also designs and manufactures non-standard steel pipe shot blasting machine according to clients’ requirements and work-pieces size.
Robotic Air Blasting System with Belt Conveyor
No.
Model
Size of room
Size of jobs
Spray gun quantity
1
TD-0606-M1
6000x6000x5000mm
3000x3000x2500mm
2
2
TD-0606-M2
6000x6000x6000mm
3000x3000x3500mm
2
3
TD-0806-M1
8000x6000x5000mm
5000x3000x2500mm
2
4
TD-0806-M2
8000x6000x6000mm
5000x3000x3500mm
2
5
TD-1006-M2
10000x6000x6000mm
7000x3000x3500mm
2
6
TD-1506-M2
15000x6000x6000mm
12000x3000x3500mm
2
7
TD-1508-M2
15000x8000x6000mm
12000x5000x3500mm
2
8
TD-1808-M2
18000x8000x6000mm
15000x5000x3500mm
4
9
TD-0806-M3
18000x10000x8000mm
15000x7000x5500mm
4
This machine is not a standard machine, any parameters can be customized according clients’ requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.
FAQ
Q:How to choose blast machine type?
A:According to work-piece size & material and productivity.
Q:What kind of abrasive for shot blasting machine ?
A: steel shot, steel grit , cut wire shot, stainless steel shot, etc.
Q:Quality warranty?
A:1 year and please find our agent in your local ,they would supply long-term after-sales service .
Q:Is foundation pit essential?
A:Up to machine size and workshop.
Q:How many workers to operate the machine?
A:1 Operator.
Q:Install assistance?
A: Installation tool and experience workers for operation training.
Q:After sale service?
A:Full stock for spare parts, regular after sale service by local agent.
