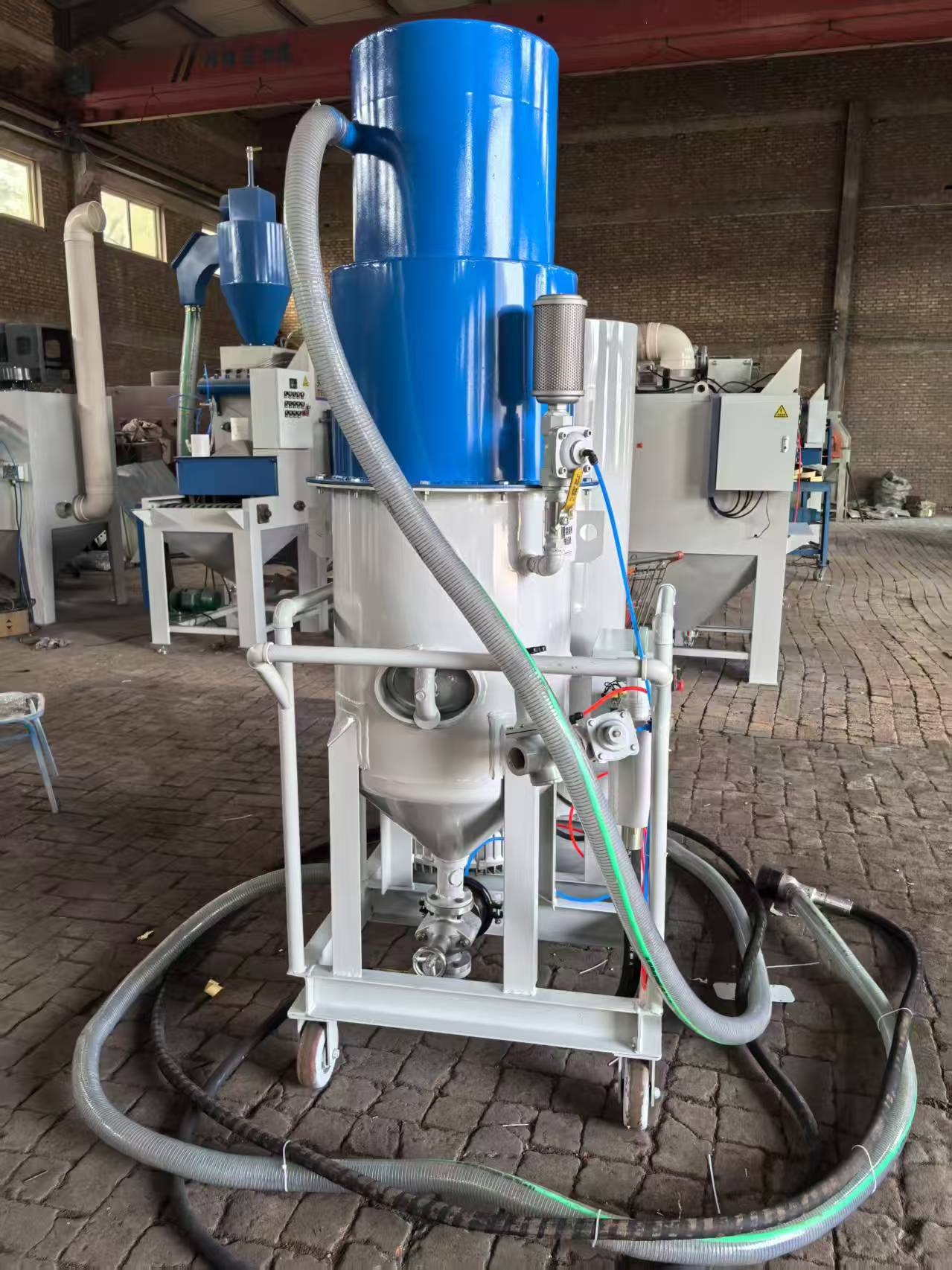

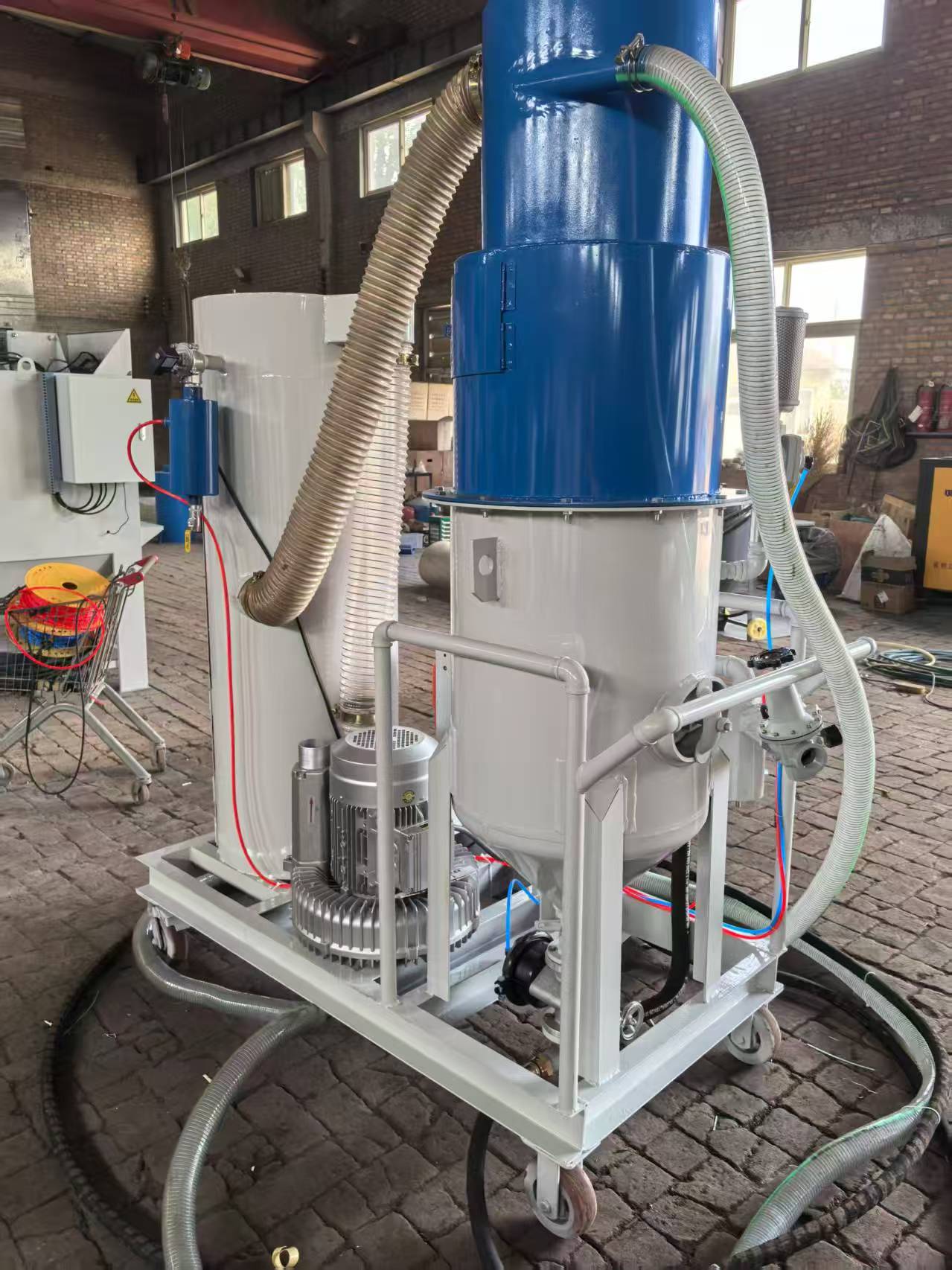

Recycling sandblasting machine 7.5kw

Construction industry solutionsRelatively speaking, it is simplerBecause this industry is relatively matureThese contents are specifically designed for use during testing

  • Parameters

    PRODUCT APPLICATION:

    The equipment adopts compressed air as power to spray the
    abrasive at high speed to the surface to be treated, after the
    abrasive impact, the surface of the workpiece rust stains, sand,
    black skin, paint, oxide skin and other debris stripped clean to
    restore the metal or non-metallic workpiece color, the surface to get
    the cleanliness and roughness required by the process, through the
    sand and dust separation system will be automatically sorted out the
    separation of sand and dust, sorted out of the abrasive material to
    continue to circulate the use of dust and rust stains, sand income
    dust collection barrels. Under the control of the handle switch, the
    equipment sandblasting, recycling, sand and dust separation, sand
    recycling, dust filtration and all other work "in one go". The working
    environment is clean, and the work site reaches GB103328-10333-
    89 workshop air dust hygiene standards.

    ParameterSpecification
    Working Pressure2-7 bar
    Diameter of Sand Blasting BinΦ600 mm
    Refill Bin DiameterΦ600 mm
    Power Supply VoltageAC380V, 50Hz
    Power Supply7.5 kW
    Air Consumption3.6 m³/min
    Working Radius10 m
    Abrasive Rate16-150 mesh
    Type of AbrasiveGarnet / Steel Shot
    Nozzle Diameter Range6-8 mm
    Surface CleanlinessSa2.5-Sa3 (GB8923-88)
    Surface Roughness40-70 μm (GB1031-83)
    Working Efficiency4-5 m²/h
    Control ModeCan be chained with auxiliary equipment
    Filtration MethodCartridge Filtration
    Filter Area12 m²
